Installation

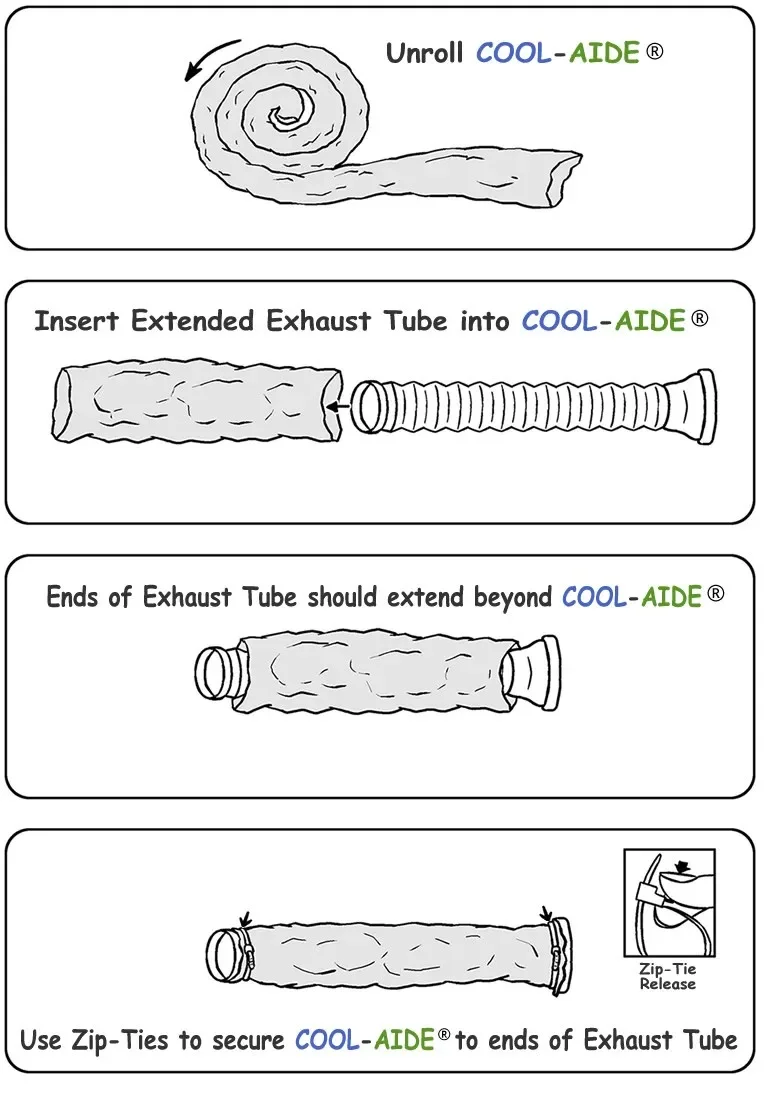

Step-by-step instructions for installing a Cool-Aide device on an exhaust tube, including unrolling the device, inserting the exhaust tube into it, ensuring the ends extend beyond the tube, and securing with zip-ties.

Installation demonstration:

Do-It-Yourself Installation of the Air Conditioner Sleeve

Total time: 5 Minutes

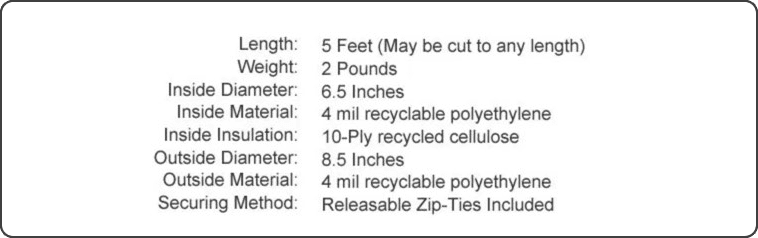

A specifications chart detailing dimensions, weight, materials, and securing method for an object.

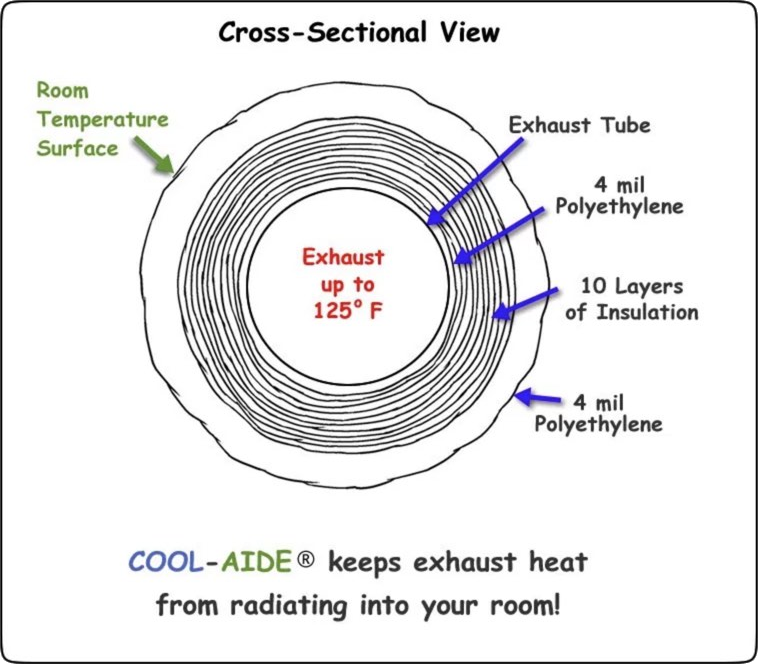

Cross-sectional diagram of an insulated exhaust pipe, showing layers of insulation and polyethylene, with labels indicating temperature and material layers, and a note about COOL-AIDE® keeping exhaust heat from radiating into the room.

Specifications:

Cool-Aide® Portable Air Conditioner Insulation Sleeve
